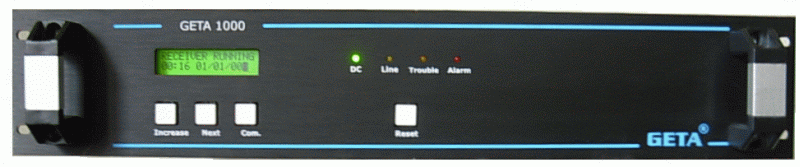

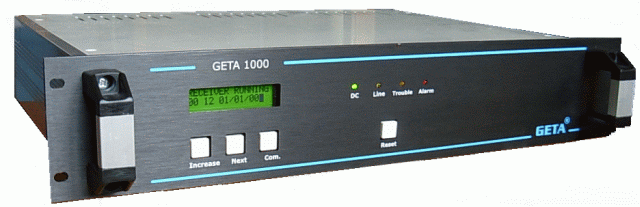

ALARM MONITORING CENTER DEVICE     "ALARM MONITORING CENTER RECEIVER"      GETA 1000

Alarm monitoring, Alarm monitoring center, Alarm information center, alarm monitoring center device, alarm receiver, alarm monitoring center, GETA1000


GENERAL:

The GETA1000 is a receiving device that transmits alarm, event, test, fault information and normal return information from the alarm control panels, as well as the opening and closing information from the telephone line to the computer and printer. As is commonly used in alarm monitoring centers or main news centers ; It is also used in the security and automation of major sites, in the operation of intelligent buildings , in factory automation applications and in hospital automation .
GETA1000 in Turkey since 1994, "the number of users has reached to 332 .
With the devices used in Turkey; usually works seamlessly with all panels and devices containing Universal "Contact ID" communication format .
GETA1000 is now faster.! The communication speed with GTCIV71 firmware is increased by 3 times.

TECHNICAL SPECIFICATIONS
MICRO PROCESSOR DESIGN:
It has 80C51 microprocessor. The device is designed and manufactured according to microprocessor control technology.
NON-EFFECTIVE SOFTWARE:
The program is saved in EPROM. The program is not affected by power outages.
INDEPENDENCE FROM COMPUTER:
GETA1000 can work without a computer. In the form of cards inserted into the computer, buyers can create problems in power failures and computer crashes. GETA 1000's operation with 12V DC eliminates computer addiction.
SUPPORTING "CONTACT ID" FORMAT:
All events during the operation of the device are displayed on the LCD display. The alarms are displayed in 4-2 format with the subscriber code consisting of 4 digits and the alarm type consisting of two digits. Each event in the event is also printed on the printer that connects to the GETA 1000.Time recording is controlled by buttons.
VOICE AND LIGHTED WARNING:
There is an audible and illuminated warning in the event of an alarm signal.
COMMUNICATION WITH COMPUTER:
All events send serial ASCII data with RS-232 port to the computer as 8 "data bit", 1 "stop bit" and "even parity" at 1200 baud rate.
BACKUP TO THE PRINTER:
GETA1000 also sends all events to the printer that can be connected to it. It also checks whether the printer is connected and running, whether its energy is switched on. welcome
ALARM AND EVENT NUMBER:
9999 x 99 Can receive different alarm codes from one telephone line.
NUMBER OF ACCOUNTS:
10000 subscribers can receive news via a single phone line.
AUTOMATIC RESETING:
There is an automatic led Watchdog ”system. When the firmware is stopped for any reason, this system is activated and the device is reset. If the software still does not work, the” Trouble ”fault LED is lit.
LINE CONTROL:
3-minute intervals of line control is made by checking the robustness of the phone line.Only "line" line burns the fault led. "LINE FAULT" appears on the screen.
COM PORT AND PRINTER CONNECTION CONTROL:
When the Reset button is pressed, it sends a signal to the computer and the printer to control the COM Ports and the printer.
BATTERY CONTROL:
Automatic battery charge and discharge control. If the battery falls below 11 volts, the message okun LOW BATTERY “is read on the display and a buzzer is sounded.
PRINTER CONTROL:
Controls the operation of the printer. The cable informs the operator with "PRINTER ERROR" warning of energy, paper end failures.

.

COMMUNICATION  FEATURES


The GETA 1000 supports the following international communication formats at the same time .

CONTACT FORMATS
NAME HANDSHAKE DATA SPEED FORMAT EXTENSION SEPARATION
Geta 2300Hz DTMF DTMF 4/2 No 2300Hz
Contact ID 1400Hz Dual Tone DTMF DTMF 4/2/1/3/2/3 No 1400Hz
Sur-Gard 2300Hz DTMF DTMF 4 / 2,4 / 3 No 2300Hz
Franklin 2300Hz 1800Hz 20bps 4/2 No 2300Hz
Radionics 2300Hz 1800Hz 40bps 4/2 No 2300Hz
Universal Pulse 2300Hz 1800Hz 20-40bps 4/2 No 2300Hz
Other Pulse 1400Hz 1800Hz 20-40bps 4/2 No 1400Hz

IMPORTANT NOTE : If only the "Contact ID" communication format is selected, the communication speed is greatly increased.


  • Line dielectric strength: 2500 volts.
  • The maximum output level of the signs is 0 dBm.
  • Line output and input impedance: 600 Ohm.
  • Even the maximum output DC voltage is 0 V.
  • Receiving sensitivity: - 40 dBm.
  • Base noise: -70 dBm.
GENERAL FEATURES

  • Power supply: 220V AC and 12V DC,
  • Power consumption: 12V DC at 100mA.
  • Dimensions: 48x37x9 cm
  • 19 "All Aluminum Anodized Box
  • (Universal 19 "U2 SUBRACK type)
  • Total weight of the device: 3150 gr
  • Operating temperature of the device: -20; + 50 C.
  • Storage temperature of the device: - 30; + 85 C;
  • Relative operating humidity: 80%.
  • Türk Telekom approval
  • TSE certified
